Comprehensive characterization of PD-L1 expression and immunotherapy-related genomic biomarkers in early- versus advanced-stage non-small cell lung cancer

BMC Pulmonary Medicine volume 25, Article number: 219 (2025) Cite this article

Abstract

Background

Programmed death-ligand 1 (PD-L1) expression is a key biomarker for predicting the efficacy of immune checkpoint inhibitors (ICIs). With the successful application of perioperative immunotherapy, understanding PD-L1-associated clinical and molecular characteristics in early-stage non-small cell lung cancer (NSCLC) patients is essential.

Methods

We analyzed 3185 NSCLC patients undergoing targeted next-generation sequencing (NGS) and PD-L1 immunohistochemistry (IHC). Associations between PD-L1 expression and molecular profiles were compared across early- (I-III) and advanced-stage (IV) cohorts.

Results

In early-stage NSCLC (n = 974), high PD-L1 expression was less common than in advanced-stage patients (lung adenocarcinoma [LUAD]: 7.52% vs. 15.98%, p < 0.001; lung squamous cell carcinoma [LUSC]: 18.33% vs. 20.84%, p = 0.058). For LUAD, high PD-L1 expression was more frequent in older patients, males and smokers. Additionally, LUSC overall showed a higher rate of high PD-L1 expression than LUAD. In LUAD, early-stage patients had a lower proportion of tumor mutation burden-high (TMB-H) compared to advanced-stage patients (p < 0.001), but no significant difference was observed in LUSC (p = 0.597). Early-stage patients also had a lower proportion of immunotherapy resistance genes than advanced-stage (LUAD: 31.15% vs. 48.50%, p = 0.014; LUSC: 13.64% vs. 45.24%, p = 0.0067). Moreover, among LUAD patients with high PD-L1 expression and all LUSC patients, early-stage patients exhibited more significantly different genetic features compared to advanced-stage patients.

Conclusions

This study provides a comprehensive analysis of immunotherapy-related biomarker rates in early-stage NSCLC patients, offering insights for perioperative immunotherapy research and biomarker analysis.

Trial registration

Not applicable.

Peer Review reports

Introduction

Immune checkpoint inhibitors (ICIs) targeting programmed death receptor 1 (PD-1) and programmed death-ligand 1 (PD-L1) have significantly improved outcomes for resectable non-small cell lung cancer (NSCLC). Key studies, including CheckMate 816 (nivolumab), IMpower010 (atezolizumab) and KEYNOTE-091 (pembrolizumab), have demonstrated durable clinical benefits of neoadjuvant/adjuvant immunotherapy in resectable NSCLC [1,2,3,4]. Despite these advances, many early-stage patients exhibit poor responses to immunotherapy, underscoring an urgent need for predictive biomarkers to optimize immunotherapy selection.

While molecular biomarkers such as PD-L1 expression [5], tumor mutation burden (TMB) [6], and genetic alterations (e.g., EGFR/ALK driver mutations, STK11/KRAS co-mutations, and MDM2/4 amplification) guide therapeutic decisions in advanced NSCLC, their predictive utility in early-stage disease remains poorly defined [7,8,9]. In this study, we retrospectively analyzed a cohort of 3185 Chinese NSCLC patients, including 974 with stage I-III disease. We investigated the correlations between PD-L1, TMB and multiple clinical features in adenocarcinoma and squamous cell carcinoma. Patients were stratified by PD-L1 expression levels to evaluate clinical characteristics, immunotherapy resistance genes and hyperprogression biomarkers. Additionally, we investigated genomic differences between early- and advanced-stage NSCLC patients with varying PD-L1 expression levels, hoping to provide some valuable information for clinical practice.

Materials and methods

Patients

This study retrospectively enrolled NSCLC patients who underwent NGS in Geneplus-Beijing (Beijing, China) for clinical molecular diagnosis and treatment at Fujian Cancer Hospital from May 2015 to November 2021. A total of 1021 cancer-related genes were tested in the samples from all patients, and immunohistochemical (IHC) staining was used to detect PD-L1 expression. The tumor node metastasis (TNM) stage was determined according to the guidelines mentioned in the 8th edition of the TNM classification. Patients whose PD-L1 could not be evaluated or whose disease stages could not be determined were excluded. Ultimately, 3185 patients were included in this study (Supplementary Fig. 1). The study was approved by the Ethics Committee of Fujian Cancer Hospital (No. SQ2022-116) and informed consents were obtained from all subjects involved in the study. For underage patients, informed consents were also obtained from their guardians.

Sample processing and DNA extraction

Comprehensive genomic analysis was performed using custom-designed NGS panels containing 1021 cancer-related genes. The somatic variants detected included single nucleotide variants (SNVs), small insertions and deletions (InDels), copy number variants (CNVs) and structural variants (SVs). Genomic DNA was isolated from FFPE tumor samples using the QIAamp DNA FFPE Kit (Qiagen, Hilden, Germany) according to the manufacturer’s protocol. The 2100 Bioanalyzer (Agilent, Santa Clara, USA) spectra were used for quality control. DNA concentrations were measured using a Qubit fluorometer and a Qubit dsDNA HS (High Sensitivity) detection kit (Invitrogen, Carlsbad, CA, USA).

Sequencing and bioinformatics analysis

Index sequencing libraries were prepared using the protocol recommended by the Illumina TruSeq DNA Library Preparation Kit (Illumina, San Diego, CA). Libraries were hybridized to custom-designed biotinylated oligonucleotide probes (Roche NimbleGen, Madison, WI, USA) covering 1021 cancer-related genes. Sequencing was performed using Illumina HiSeq 3000 (Illumina). Cleaning reads were mapped and aligned to the reference human genome (hg19) with BWA (version 0.7.12) after the removal of end junction sequences and low-quality reads. SNVs were called using MuTect2 (3.4–46), InDels were called using GATK, CNVs were detected using Contra (2.0.8), and SVs were detected using BreakDancer. All final candidate variants were verified by the integrated genome browser.

Assessment of TMB

TMB was calculated using sequencing data from a 1021-gene panel. It was defined as the total number of somatic nonsynonymous single nucleotide variants and small insertions/deletions per megabase (Mb) in the coding region. In this study, a TMB value of ≥ 9 mutations per Mb (muts/Mb) was defined as TMB-high (TMB-H). This threshold was derived from a statistical analysis of a large cohort, utilizing the top quartile (> 25%) of the TMB distribution in 2000 lung cancer samples from the Geneplus database was used as the cutoff value, with clinical validation performed to confirm its prognostic utility [10, 11].

PD-L1 staining

PD-L1 expression was assessed by immunohistochemistry using 22C3 PharmDx assay. The Tumor Proportion Score (TPS) was used to determine PD-L1 expression, defined as the percentage of tumor cells exhibiting membranous PD-L1 staining. Based on previous studies [12, 13], PD-L1 expression was categorized as follows: negative (TPS < 1%), low (TPS 1–49%), or high (TPS ≥ 50%).

Statistical analysis

Unpaired Student’s t tests were used to compare age and TMB between groups. Chi-square and Fisher’s exact tests were used to assess mutational differences between groups. Pearson correlation (r) was selected to assess the linear relationship between TMB (continuous variable) and PD-L1 TPS expression (continuous percentage range 0–100%, but typically categorized as < 1%, 1–49%, and ≥ 50% in clinical practice). Statistical analysis was performed using GraphPad Prism 7 (GraphPad Software, La Jolla, CA, USA). The results were considered statistically significant when p values were < 0.05.

Results

Clinical characteristics and PD-L1 expression in stage I-III and stage IV NSCLC patients

A total of 3185 patients were enrolled, including those with pathologically confirmed adenocarcinoma (n = 2476, 77.7%), squamous cell carcinoma (n = 523, 16.42%), or others (n = 186, 5.8%). Of these patients (Table 1), 1892 (59.4%) were male and 1068 (33.53%) were smokers. The median patient age was 61 years, and the median TMB was 4 muts/Mb. Among these patients, 974 were stage I-III (30.58%), and 2211 were stage IV (69.42%). The clinical characteristics of all patients with stage I-III and stage IV NSCLC were compared. Compared with stage IV NSCLC cohort, stage I-III cohort were younger (p < 0.001), showed higher proportion of female patients (p < 0.001), non-smokers (p < 0.001), and adenocarcinoma patients (p < 0.001), and had a lower rate of high PD-L1 expression (p < 0.001) (Supplementary Table 1).

Table 1 Clinical characteristics of LUAD patients and LUSC patients
Full size table

Considering the large differences in clinical and molecular characteristics between patients with lung adenocarcinoma (LUAD) and lung squamous cell carcinoma (LUSC), we analyzed PD-L1 expression in patients with LUAD and LUSC, separately. In LUAD, compared with stage IV patients, stage I-III patients were diagnosed at a younger age (p < 0.001, Table 1), and had higher percentage of females (p = 0.0075), and non-smokers (p < 0.001). In LUSC, there was no statistical difference in age or sex between stage I-III patients and stage IV patients, while a higher proportion of smokers was observed in stage I-III patients (p = 0.046). In addition, patients with stage I-III LUAD demonstrated a significantly lower percentage of high PD-L1 expression than patients with stage IV LUAD (p < 0.001, Table 1). A similar trend was observed for LUSC, but the difference was not statistically significant (p = 0.058).

Correlation between clinical characteristics and PD-L1 expression in LUAD and LUSC at stages I-III and IV

Next, we stratified the clinical characteristics of patients by PD-L1 expression (high, low, negative) in stages I-III and IV of LUAD and LUSC (Table 2), respectively. We observed that the percentages of patients with high PD-L1 expression in stages I-III and IV were 7.52% (61/811) and 15.98% (266/1665) in LUAD, and 18.33% (22/120) and 20.84% (84/403) in LUSC. In the stage IV cohort of LUAD patients, PD-L1 expression did not significantly differ by age (p = 0.493). PD-L1 expression was significantly higher in males and smokers (p < 0.001). In the stage I-III cohort of LUAD patients, PD-L1 expression was significantly higher in older patients(p = 0.037), males, and smokers (p < 0.001). In LUSC, there were no significant differences in patients with different PD-L1 expression levels in terms of age, gender, or smoking status (Table 2).

Table 2 Clinical characteristics of different PD-L1 expression cohorts in LUAD and LUSC
Full size table

We then compared PD-L1 expression between LUAD and LUSC at stages I-III and IV, respectively. There was a significant difference in PD-L1 expression between LUAD and LUSC in both the I-III and IV phases. The percentage of positive PD-L1 (TPS ≥ 1%) in LUSC was significantly higher than that in LUAD in both the early-stage (LUAD vs. LUSC: 40.81% vs. 70.83, p < 0.001) and advanced stage (LUAD vs. LUSC: 50.93% vs. 61.29%, p < 0.001) (Supplementary Fig. 2).

Immunotherapy-related genomic characteristics of stage I-III and stage IV NSCLC patients

We next analyzed the immunotherapy relevant genomic characteristics in the LUAD and LUSC cohorts with different stages. In the LUAD cohort, the percentage of TMB-H and median TMB in stage IV LUAD were significantly higher than those in stage I-III patients (TMB-H: 17.06% vs. 11.71%, p < 0.001, TMB-median: 3.84 vs. 2 muts/Mb, p = 0.012, Table 1). In the LUSC group, 56.67% of patients with stage I-III and 59.8% of patients with stage IV were TMB-H (p = 0.597). The median TMB was consistent in early- and advanced-stage patients (stage I-III vs. stage IV = 10.56 vs. 10.56 mutations/Mb, p = 0.123, Table 1). Compared with those in the LUAD cohort, LUSC cohort had higher TMB values (stage I-III: 10.56 vs. 2.00 muts/Mb, p < 0.001; stage IV: 10.56 vs. 3.84 muts/Mb, p < 0.001; Fig. 1A). In addition, there was no significant correlation between PD-L1 expression and TMB (Pearson’s correlation coefficient = 0.1043, 95% CI: 0.68 − 0.14, p < 0.001; Fig. 1B).

Fig. 1
figure 1

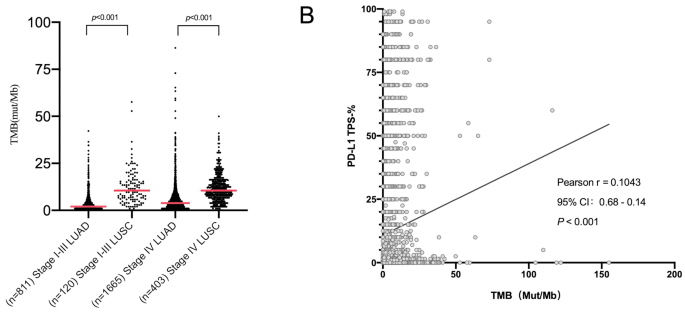

Characteristics of PD-L1 expression and the TMB in patients. A. TMB in patients with different stages of LUAD and LUSC. The LUSC cohort exhibited significantly higher TMB than the LUAD cohort across all stages (stage I-III: median 10.56 vs. 2.00 muts/Mb, p < 0.001; stage IV: 10.56 vs. 3.84 muts/Mb, p < 0.001). B. Correlation between TMB and PD-L1 expression. No significant correlation was observed (Pearson’s correlation coefficient = 0.1043, 95% CI: 0.68 − 0.14, p < 0.001)

Full size image

Next, we calculated the incidence of negative immune-related and hyperprogressive factors in the overall cohort. According to previous literature, several genes were analyzed, including genes EGFR, ALK, KRAS + STK11 comutation, PTEN, JAK1/2, MDM2/4, and CCND1. In the entire cohort, negative immunotherapy-related variants were identified in a total of 1700 (53.38%) patients, and the incidence of these mutations was not low, the incidence of EGFR was the highest, at 40.78% (1299/3185). The proportions of patients with other immunotherapy-related negative mutations were 4.68% (149/3185) for CCND1 amplification, 4.4% (140/3185) for PTEN mutation, 4.21% (134/3185) for ALK mutation, 1.6% (51/3185) for KRAS + STK11 comutations, 1.13% (36/3185, 1.13%) for MDM2/4 amplification and 0.53% (17/3185) for JAK1/2 mutations (Supplementary Table 2).

We further calculated the incidence of genetic biomarkers that were negatively related to immunotherapy efficacy in LUAD and LUSC patients with different PD-L1 expression levels at stages I-III and stage IV, respectively. As shown in Table 3, there were large differences in the genetic biomarkers between LUAD and LUSC. Mutations in EGFR and ALK were enriched in LUAD patients. Among patients with stage I-III LUAD, the percentage of EGFR-mutated patients with high PD-L1 expression, low PD-L1 expression and negative PD-L1 expression were 18.03 (11/61), 48.89% (132/270) and 62.29% (299/811), respectively (p < 0.001). Among patients with stage IV LUAD, the percentage of EGFR-mutated patients with high PD-L1 expression, low PD-L1 expression and negative PD-L1 expression were 30.08% (80/266), 51.03% (297/582) and 53.24% (435/817), respectively (p < 0.001). A negative correlation was observed between the percentage of patients with EGFR mutations and PD-L1 expression in the LUAD cohort, regardless of stage (p < 0.001, Table 3). Among the other negative immune-related factors in LUAD, the most common mutation was ALK. Interestingly, it seemed that ALK mutation was more common in patients with high PD-L1 expression than low PD-L1 expression and negative PD-L1, regardless of stage. However, the differences were not significant, possibly because of the limited number of patients with ALK mutations. Other factors accounted for a relatively small proportion.

Table 3 Occurrence of negative correlations and hyperprogression factors in LUAD and LUSC patients with different PD-L1 expression levels
Full size table

In contrast, the proportions of patients with PTEN and CCND1 mutations were higher in those with LUSC (Table 3). The proportions of PTEN mutation, CCND1 amplification, ALK mutation, KRAS + STK11 co-mutation and MDM2/4 amplification in the high PD-L1 expression, low PD-L1 expression and negative PD-L1 expression populations were no significantly difference at either stage I-III or stage IV. However, the detection rates of EGFR and JAK1/2 mutations were significantly higher in stage IV patients with high PD-L1 expression. We combined the incidence of these immune-related biomarkers and found that in the high PD-L1 expression group, the proportion of patients with genes associated with poor immunotherapy efficacy in phase IV patients was higher than that in stage I-III (stage I-III vs. IV: 31.15% vs. 48.50%, p = 0.014, LUAD; 13.64% vs. 45.24%, p = 0.0067, LUSC). Moreover, in LUAD, as the expression of PD-L1 increased, the occurrence of immune-negative related genes decreased (I-III: p < 0.001, IV: p < 0.001; Table 3). In early-stage LUSC, the incidence of genes associated with poor immunotherapy efficacy decreased with the increasing of PD-L1 expression but was not significant (p = 0.318, Table 3). However, in stage IV LUSC, the expression of PD-L1 was positively correlated with the occurrence of genes associated with poor immunotherapy efficacy (p = 0.023, Table 3).

Differentially mutated genes among patients with different disease stages and PD-L1 expression

To identify other differences in genomic features, we compared the genomic variants among different PD-L1 expression subgroups in early- and advanced-stage LUAD and LUSC, respectively. In the high PD-L1 expression group, rare genes, such as NTRK2 and ERBB3, were more significantly present in I-III LUAD (Fig. 2A). In the low and negative PD-L1 expression group, most genes, such as TP53, ATRX, ARID1A, RET, KEAP1, LRP1B, and RB1, were more common in stage IV LUAD, while a few genes, such as SETD2, RBM10, and EGFR, were more significantly observed in I-III LUAD (Fig. 2B and C, Supplementary Table 3). In LUSC, most genes, such as EPHA3, AFAF, and PIK3R2, were more significantly expressed among different PD-L1 expression subgroups in I-III LUSC (Fig. 2D and F, Supplementary Table 3). Early-stage LUAD and LUSC patients with different PD-L1 expression levels had distinct genomic profiles compared with those of advanced patients.

Fig. 2
figure 2

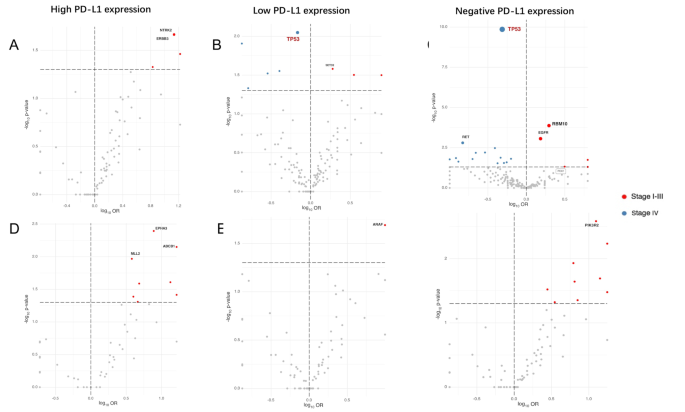

Stage-specific genomic features of PD-L1-stratified LUAD and LUSC. LUAD Subgroups. A. High PD-L1 expression (TPS ≥ 50%). Stage I-III LUAD showed enrichment of NTRK2 (I-III vs. IV: 4.92% vs. 0.38%, p = 0.022) and ERBB3 (I-III vs. IV: 4.92% vs. 0.38%, p = 0.022) compared to stage IV. B. Low PD-L1 expression (TPS 1–49%). Stage IV tumors exhibited higher TP53 mutations (I-III vs. IV: 49.62% vs. 59.51%, p = 0.009), while SETD2 was more enrichment in Stage I-III (I-III vs. IV: 9.77% vs. 5.41%, p = 0.026). C. Negative PD-L1 expression (TPS < 1%). TP53 (I-III vs. IV: 32.48% vs. 51.05%, p < 0.001) and RET (I-III vs. IV: 0.43% vs. 2.58%, p = 0.001) were more common in stage IV LUAD, while RBM10 (I-III vs. IV: 16.45% vs. 9.29%, p < 0.001) and EGFR were more significant in I-III LUAD (I-III vs. IV: 64.74% vs. 55.14%, p = 0.001). LUSC Subgroups. D. High PD-L1 expression (TPS ≥ 50%). EPHA3 (I-III vs. IV: 28.57% vs. 4.76%, p = 0.004), ABCB1 (I-III vs. IV: 14.29% vs. 0.00%, p = 0.007) and MLL2 were more significantly expressed in stage I-III (I-III vs. IV: 47.62% vs. 19.05%, p = 0.011). E. Low PD-L1 expression (TPS 1–49%). AFAF was more significantly expressed in stage I-III (I-III vs. IV: 4.84% vs. 0.00%, p = 0.02). F. Negative PD-L1 expression (TPS < 1%). PIK3R2 and other genes were enriched in stage I-III (I-III vs. IV: 14.29% vs. 1.29%, p = 0.003). TPS, tumor proportion score; LUAD, lung adenocarcinoma; LUSC, lung squamous cell carcinoma

Full size image

Furthermore, we compared the genetic differences among different PD-L1 expression subgroups at different stages. We observed some similarities in differential genes between early- and advanced-stage LUAD patients. In both the I-III and IV phases of LUAD, EGFR was more prevalent in the PD-L1 negative group, and TP53 was more prevalent in the high PD-L1 expression group (Fig. 3A and B). In addition, in the group with high PD-L1 expression in LUAD, driver gene variants such as KRAS, MET, and BRAF were more common, and the percentages of other genes, such as LRP1B and ARID1A, were also significantly higher. In stage I-III LUSC, the proportion of NFE2L2 and EPHA3 genes was higher in the group with high PD-L1 expression. In stage IV LUSC, ARID1A and ERBB2 genes were more significantly observed in the group with high PD-L1 expression, while MLL2 genes was more significantly observed in the group with negative PD-L1 expression. (Figure 3C and D). There were differences of differentially genes in LUSC between the early- and advanced-stage. The proportions of genes occurring in different PD-L1 expression subgroups at different stages are detailed in Supplementary Table 4.

Fig. 3
figure 3

PD-L1-associated genomic signatures across NSCLC subtypes and stages. LUAD Subgroups. A. Early-stage (I-III). TP53 and LRP1B were more significantly expressed in high PD-L1 expression subgroup (TP53: High: 68.85% vs. Low: 49.62% vs. Negative: 32.48%, p < 0.001; LRP1B: High: 27.87% vs. Low: 17.29% vs. Negative: 8.97%, p < 0.001), while EGFR was more common in negative PD-L1 expression subgroup (High: 19.67% vs. Low: 51.13% vs. Negative: 64.74%, p < 0.001). B. Advanced stage (IV). TP53, KRAS and MET were more significantly expressed in high PD-L1 expression subgroup (TP53: High: 64.15% vs. Low: 59.51% vs. Negative: 51.05%, p < 0.001; KRAS: High: 23.02% vs. Low: 13.44% vs. Negative: 11.03%, p < 0.001; MET: High: 10.19% vs. Low: 4.19% vs. Negative: 3.22%, p < 0.001), while EGFR was also observed to be associated with negative PD-L1 expression (High: 31.70% vs. Low: 52.53% vs. Negative: 55.14%, p < 0.001). C. Early-stage (I-III). The proportion of NFE2L2 and ASXL1 genes was higher in the group with high PD-L1 expression (NFE2L2: High: 42.86% vs. Low: 11.29% vs. Negative: 2.86%, p < 0.001; ASXL1: High: 23.81% vs. Low: 1.61% vs. Negative: 11.43%, p = 0.003). D. Advanced stage (IV). AR and ARID1A genes were more significantly expressed in the group with high PD-L1 expression (AR: High: 10.71% vs. Low: 2.47% vs. Negative: 0.65%, p < 0.001; ARID1A: High: 17.86% vs. Low: 8.64% vs. Negative: 4.52%, p = 0.004), while MLL2 genes was more significantly expressed in the group with negative PD-L1 expression (MLL2: High: 19.05% vs. Low: 30.25% vs. Negative: 36.77%, p = 0.016). Circles represent PD-L1 expression levels: red (high), green (low), blue (negative). NSCLC, non-small cell lung cancer; LUAD, lung adenocarcinoma; LUSC, lung squamous cell carcinoma

Full size image

Discussion

This is the largest study to date to comprehensively examine the clinical and molecular characteristics associations with PD-L1 expression levels in early-stage NSCLC. We revealed a significant relationship between PD-L1 expression and factors such as disease stage, pathologic subtype, age, gender, and smoking history. Additionally, early-stage patients showed lower rates of immunotherapy resistance genes, especially those with high PD-L1 expression. These findings highlight the high heterogeneity of NSCLC across stages and PD-L1 expression levels.

Early-stage patients had fewer cases of high PD-L1 expression compared to advanced-stage patients. This might be because early tumors have not yet developed immune-evasion mechanisms. While PD-L1 expression is known to be influenced by oncogenic driver activation and tumor heterogeneity [14,15,16], emerging evidence highlights its dynamic evolution during disease progression. A longitudinal study (n = 402) demonstrated that 40.1% of patients exhibited increased PD-L1 expression at recurrence, while 32.8% showed significant decreases, while molecular alterations such as STK11/B2M copy number gains driving upregulation and JAK2/CD274 loss causing downregulation [17]. These expression changes directly influence immunotherapy selection. In addition, studies have shown that in the latest test, patients with PD-L1 ≥ 1% had longer progression-free survival (PFS) compared to patients with PD-L1 < 1% (PFS: 3.7 vs. 1.6 months, p = 0.01) [17]. Studies such as IMpower010 have confirmed the predict value of PD-L1 status for immunotherapy outcomes [4]. These findings underscore the critical of reassessing PD-L1 status through rebiopsy at recurrence to enable personalized therapeutic strategies. For patients exhibiting PD-L1 upregulation (PD-L1 ≥ 1%), treatment should be tailored by integrating molecular features such as STK11 and JAK2 alterations, which may guide immunotherapy optimization. Conversely, those with PD-L1 downregulation require comprehensive genomic profiling to determine alternative therapies (targeted drugs or combination regimens).

While PD-L1 and TMB are both used to predict immunotherapy responses [18, 19], our study found no strong correlation between them. This finding aligns with previous reports in lung and other cancers, though some studies suggest a weak positive correlation in NSCLC [20]. A retrospective multicenter study demonstrated that NSCLC patients with PD-L1 expression ≥ 50% and TMB-H exhibited superior objective response rate (ORR) (57% vs. 8.7% in dual-low) and OS (47.7 vs. 10.4 months) with immunotherapy [21]. These data indicate that combined biomarker analysis (PD-L1 + TMB) may better stratify patients for immunotherapy, particularly among dual-high patients.

EGFR activating mutations are the most common driver mutations in NSCLC, particularly in LUAD [22]. Our study showed that EGFR mutations were more frequent in patients with negative PD-L1 expression, aligning with previous research that supports targeted therapies may be a preferable option for this subgroup [23]. Furthermore, multiple clinical trials (CheckMate-012, KEYNOTE-001) have demonstrated that EGFR-mutant NSCLC have shown poor response to PD-1/PD-L1 monotherapy [24, 25]. This may occur because EGFR mutations weaken immune responses by upregulating PD-L1 expression and suppressing T-cell activity [26]. These findings validate guideline recommendations that prioritize targeted therapy regardless of PD-L1 status. In contrast, TP53 mutations correlate with elevated PD-L1 expression and better immunotherapy responses, demonstrated by a 51.2% ORR in TP53-mutant NSCLC versus 20.7% in wild-type patients [27,28,29]. Other actionable genomic alterations including KRAS and MET also exhibit significant association with PD-L1 upregulation. In the KRYSTAL-7 study, patients with KRAS G12-mutant advanced NSCLC receiving combined adagrasib and pembrolizumab demonstrated a robust ORR of 63% in the PD-L1 ≥ 50% subgroup (n = 51/148) [30]. Notably, evidence indicates that KRAS-mutant tumors with co-occurring TP53 mutations exhibit significantly improved immunotherapy efficacy (ORR: 55.4% vs. 39.5%) [31]. Furthermore, MET-mutant NSCLC exhibits heightened immunogenicity through increase tumor-infiltrating lymphocytes (TILs) [32]. While MET tyrosine kinase inhibitors (TKIs) remain first-line therapy for METex14 mutations, the dual targeting of MET and PD-1 demonstrated clinical activity in pretreated patients with advanced EGFR wild-type NSCLC, independent of MET status [33]. These findings suggesting that incorporating information on these genetic variations into clinical practice may enable more precise selection of patients suitable for immunotherapy, particularly those with PD-L1 ≥ 50%.

The widespread adoption of NGS in clinical practice has revealed extensive genetic heterogeneity in NSCLC, with co-occurring mutations significantly influencing response to immune checkpoint inhibitors (ICIs). While most studies historically focused on single-gene biomarkers (e.g., EGFR, TP53), emerging evidence highlights the critical role of multi-gene interactions in shaping ICIs outcomes [34]. A retrospective analysis of 1745 patients showed that co-mutations such as KRAS + TP53 predict ICIs efficacy more better than individual biomarkers, independent of TMB and PD-L1 expression [35]. To address this, multi-gene profiling (e.g., TP53, KRAS and MDM2/4) is essential for risk stratification. For instance, a phase 2 trial in resectable EGFR-mutant NSCLC revealed that 44% patients achieved major pathological response (MPR) with neoadjuvant immunotherapy plus chemotherapy, with TP53 missense mutations, RB1 and RBM10 mutations enriched in responders [36]. Conversely, MDM2/4 amplifications correlate with an increased risk of hyperprogressive disease (HPD) receiving immune checkpoint inhibitors [8, 37]. Notably, our study revealed that 13.64–31.15% of early-stage cases with high PD-L1 expression harbored immunotherapy resistance genes such as MDM2/4 amplifications. These findings collectively emphasize the critical need of integrating multi-gene molecular signatures (e.g., TP53 and RBM10 for immunotherapy sensitivity, MDM2/4 for resistance) into clinical practice. Future research should prioritize prospective multi-center, randomized controlled trials (RCTs) to validate their predictive utility of co-mutation profiles (KRAS + TP53) and resistance markers (MDM2/4 amplifications), particularly in PD-L1-high NSCLC subgroups. Given the high prevalence of immunotherapy resistance mechanisms adaptive therapeutic strategies integrating ICIs must be developed to overcome therapy resistance. Concurrently, implementing real-time resistance surveillance frameworks—combining serial liquid biopsy (ctDNA) and standardized multi-gene panels (TP53/KRAS/STK11/MDM2/4)—will enable dynamic mapping of clonal trajectories and early detection of acquired alterations during perioperative immunotherapy, thereby closing the loop between biomarker discovery and precision intervention.

Our research has several limitations. First, the retrospective design introduces potential selection bias, particularly in sample selection due to heterogeneous treatment regimens across patients. Future prospective multi-center studies should implement standardized therapeutic protocols with centralized biomarker assessment. Second, detailed clinical outcome data (e.g., PFS, OS or ORR) were not systematically recorded, limiting direct correlations between genomic features and immunotherapy efficacy. Additionally, the sample size for early-stage NSCLC, particularly PD-L1-high subgroups, remains modest, necessitating validation in larger cohorts. Multi-institutional consortia could aggregate larger early-stage NSCLC cohorts. Despite these constraints, to our knowledge, this is the first real-world study to comprehensively compare the genomic characteristics of NSCLC patients with varying PD-L1 expression leves across early- and advanced stage. Prospective multi-center studies integrating standardized treatment protocols and longitudinal outcome tracking are warranted to validate and refine predictive biomarkers for immunotherapy in early-stage NSCLC. In conclusion, it is hoped that our results provide a comprehensive understanding of the genomic landscape of early-stage NSCLC.

Conclusions

In summary, significant differences in PD-L1 expression, TMB, and clinical characteristics are observed between early-stage and advanced NSCLC patients. Furthermore, the prevalence of immune-related genes and genomic profiles vary substantially among patients with different PD-L1 expression levels. These findings underscore the importance of conducting comprehensive genetic evaluations before immunotherapy in both early-stage and advanced NSCLC patients.
